Effortlessly control the temperature of your sauna with ease.
Sauna control panel consists of timer and thermostat in one unit to control sauna heaters operation. Sauna timer counts down the time and sauna thermostat controls the temperature. For safety in use at home sauna, the maximum recommended sauna temperature should not be higher than 131 deg. Fahrenheit ( 55C ) for infrared sauna and 194 deg. Fahrenheit ( 90C ) for traditional, dry sauna, while the maximum time should not exceed 60 minutes. For commercial applications the timer limits and the temperature preset and pre-heat limits can be customized.
Horizontal model
Up to 9 push-buttons:
1. CONTROL ON/OFF
2. TIME UP
3. TIME DOWN
4. TEMPERATURE UP
5. TEMPERATURE DOWN
6. USER PRESET or FAN ( optional relay contact )
7. LIGHT ON / OFF ( optional relay contact )
8. RADIO / CD ON / OFF ( optional relay contact )
9. Preheat or DELAY-BEFORE-START up to 100 hrs
Metal Face ( 3-gang )
Dim's: 6.5" x 4.5" x 0.3"
165mm x 115mm x 8mm
Black, White or Custom
labels available
Vertical model
Up to 9 push-buttons
Metal Face ( 3-gang )
Dim's: 4.5" x 6.5" x 0.3"
115mm x 165mm x 8mm
Black, White or Custom
labels available
No Power Box needed for most applications
Get PDF flyer
--> HEREControl panel specs
Model series SD-4PB
With external temperature sensor
Models for 120Vac, 208-250Vac,
12V and 24V AC/DC
Output load : up to 60 Amp / 250Vac.
Optional Remote Control + Display Panel
Temperature range: -40F (-40C ) to 255F ( 124C )
Higher ranges available up to 960F ( 515C )
Timer range: Seconds, Hours, Minutes or Days
Heating and/or Cooling modes
Installation example
in 3-gang wiring box
Very low EMF radiation
Upgrade to a new sauna control panel for optimal sauna settings. Customize your sauna with our advanced control panel.
Sauna manufacturers and installers can request custom features and specifications.
We can provide custom designed face decals with company logo and special designations.
Both, horizontal and vertical panel form factors are available.
Variety of control panel colors and shapes.
Indicator LED display in Red, Green or Blue can even be different for time and temperature.
Large size push-buttons make them easy to operate - user friendly.
Customized temperature and timer ranges.
Easy installation.
APPLICATIONS:
Examples of some custom face labels
Temperature Sensor Probes
Flush face controller installation
with optional remote panel
Example of available models
Wiring extendable
up to 500 ft ( 150M)
Semi-Flush face controller installation
in wall or panel
with optional remote control panel
Temperature sensor protection
Model PPB-1RLED
Sauna remote START - STOP button
with LED indicator
Optional Plate-Guard
for standard sensor probes.
Plastic model PPP-4
and SS model PPS-4
Optional Plastic Guard
for standard sensor probes.
Model PG-5
Temperature sensor
with flange
Control panel wiring examples
More wiring examples for SD-4 controllerExtended SD-4PB wiring
with contactor
for very high loads
Simple SD-4PB wiring
for up to 30 Amps load
Extended SD-4PB wiring
for up to 60 Amps
loads in two banks
SD-4PB wiring
with additional
light or fan control
Download controller specifications
SD-4PB is a digital temperature and time sauna controller designed for Heating and/or Cooling.
It has an internal, accurate, programmable thermostat processor, that is self-calibrating and does not require any maintenance or adjustments.
The internal, programmable, digital timer allows the user to set the thermostat to operate for a preset period of time, depending upon the model; in seconds, minutes, hours or days.
While the timer is running, the thermostat controls the on-board relays.
Standard models have two on-board, high power relays with contacts rated for up to 30Amp, 250Vac load max. each. Optionally an internal alarm buzzer or up to two additional relays can be ordered for special applications to control loads of up to 10Amp, 250Vac max. each.
The high power and the optional relays' contacts can be wired up to control Heaters, HVAC and other loads like a Fan, Motor, Pump, etc...
All relays' contacts can be wired up as completely isolated from the controller's supply, so the supply voltage can be different than the voltages on the loads.
In order to switch very high loads, the relays' contacts can be wired up to control the coils of external contactors.
An additional, dry contact input can be ordered for external Start/Stop switch or other applications, like for instance a water level sensor switch.
Also, an additional, low voltage output can be ordered for max. load of up to 30mA, 5Vdc, for instance to connect to an external LED indicator lamp.
The controller is operated and the temperature and timer are preset by pressing the corresponding keys
on the control panel face. The preset values are stored in internal memory.
A variety of the controller's operating configurations, temperature and timer ranges and limits are also programmable via the face plate keys.
In customized face plates the controller can have up to 9 push-buttons.
The 6-digit LED display shows the temperature and timer preset values, the
current temperature, the timer count, and other indications of operation. The LED display can be ordered in RED, GREEN or BLUE color.

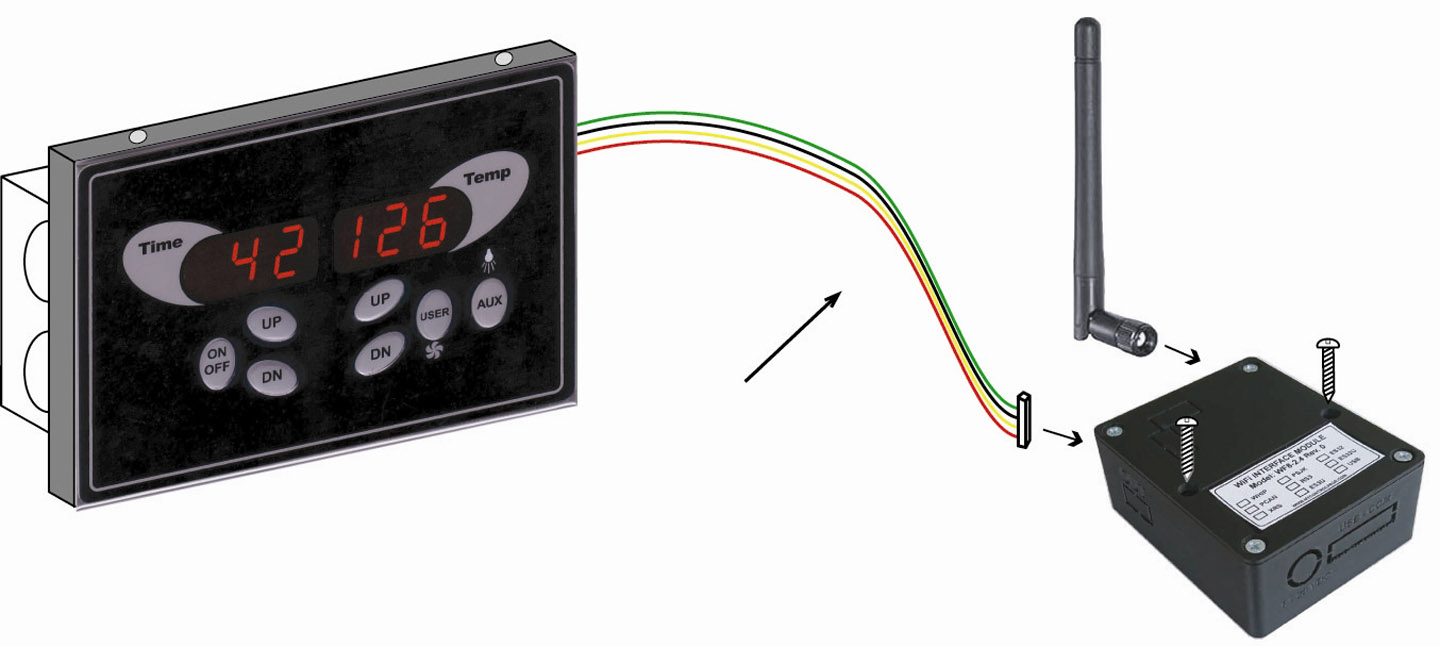

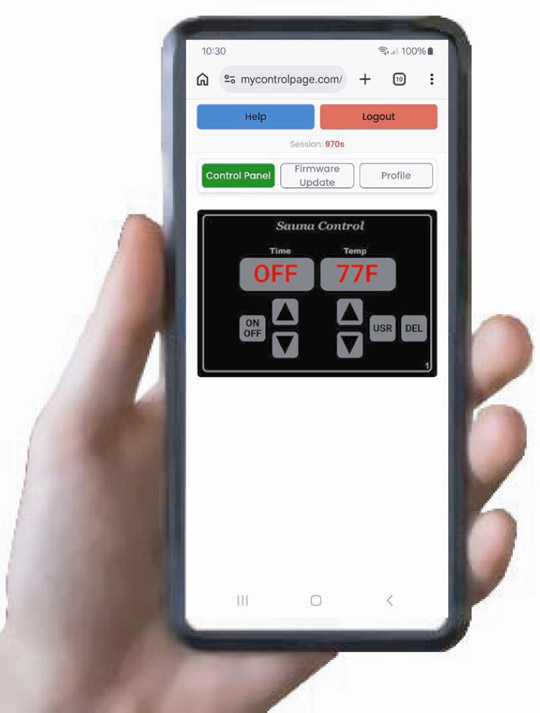

Another option is an external Remote Control and Display Panel ( SDR-4PB ) that can be connected to the main panel via a 4- or 2-conductor cable up to 500 ft ( 150M ) away.
Note, that the SD-4PB sauna controllers are designed to eliminate almost completely the EMF ( Electro Magnetic Field ) radiation.
